GRANE

Discovery year
1991
Wellbore
Status
Producing
Business unit

Operator:

Equinor Energy AS

Area:

North sea

Production start:

23.09.2003

Historical investments per 31.12.2020:

32 557 MILL NOK (nominal)

Future investments from 2021:

8 658 MILL NOK (real 2021 NOK)

PRODUCTION FROM THE FIELD

Source: The Norwegian Petroleum Directorate

Print illustration Download data PRODUCTION FROM THE FIELD Download PDF Download as image (PNG)

High Contrast Mode

PRODUCTION FROM THE FIELD

Development

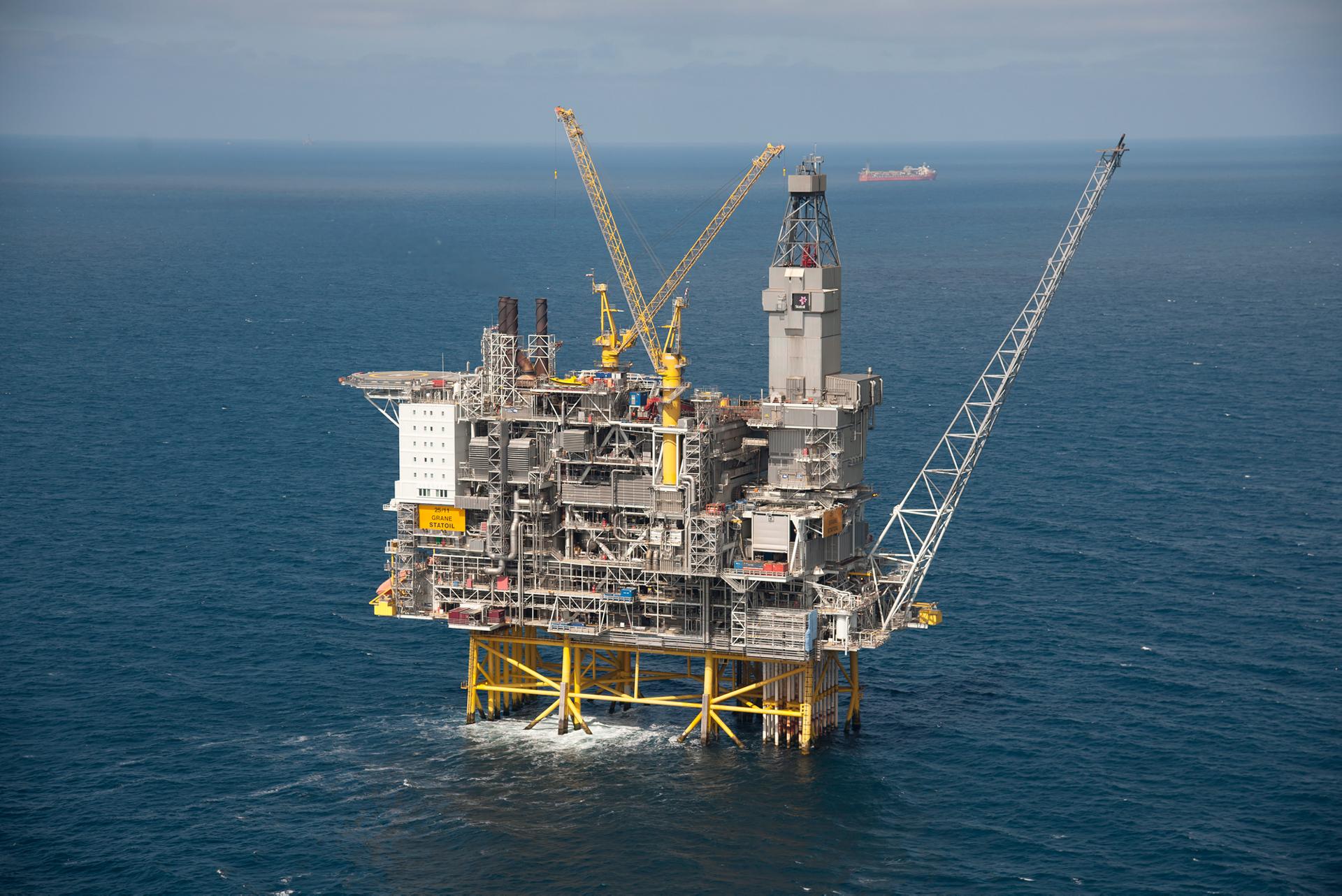

Grane is a field in the central part of the North Sea, just east of the Balder field. The water depth is 130 metres. Grane was discovered in 1991, and the plan for development and operation (PDO) was approved in 2000. The field has been developed with an integrated accommodation, drilling and processing facility with a steel jacket. The facility has 40 well slots. Production started in 2003. The Svalin field is tied-back to Grane platform.

Reservoir

Grane produces oil with high viscosity mostly from Paleocene sandstone in the Heimdal Formation with very good reservoir properties. The field comprises a main structure and some additional segments with full communication. The reservoir depth is 1,700 metres.

Recovery strategy

The field is produced by gas injection at the top of the structure, and horizontal production wells at the bottom of the oil zone. In 2010, Grane terminated gas import from the Heimdal gas centre, and only produced gas was reinjected into the reservoir. Gas import started up again in 2014. Grane has limited water injection. Oil recovery is maintained by gas injection and drilling of new wells, including sidetracks from existing producers.

Transport

Oil from Grane is transported by pipeline to the Sture terminal for storage and export.

Status

The recoverable volumes have increased since the initial PDO estimates. A permanent reservoir monitoring system installed on the seabed provides more detailed seismic data for improved reservoir management. Several wells have been drilled, and new wells are being planned, most of them as multilateral wells. The Breidablikk field is under development as a tie-back to the Grane platform.

ACCRUED INVESTMENTS IN NOMINAL NOK

Source: The Norwegian Petroleum Directorate

Print illustration Download data ACCRUED INVESTMENTS IN NOMINAL NOK Download PDF Download as image (PNG)

High Contrast Mode

ACCRUED INVESTMENTS IN NOMINAL NOK

NPD's CURRENT RESOURCE ESTIMATES

All numbers in mill. Sm3 o.e.

Print table Download data NPD's CURRENT RESOURCE ESTIMATES

NPD's CURRENT RESOURCE ESTIMATES – All numbers in mill. Sm3 o.e.
Bookmark
More information

Loading map...

OWNERS

Print illustration Download data OWNERS

OWNERS

High Contrast Mode

DISCOVERIES INCLUDED IN THE FIELD

DISCOVERY
25/11-15 Grane

MORE INFORMATION

Visit the Norwegian Petroleum Directorate's fact pages for more information
