GULLFAKS

Discovery year
1978
Wellbore
Status
Producing
Licence

Operator:

Equinor Energy AS

Area:

North sea

Production start:

22.12.1986

Historical investments per 31.12.2016:

94 923 MILL NOK (nominal)

Future investments from 2017:

25 470 MILL NOK (real 2017 NOK)

PRODUCTION FROM THE FIELD

Source: The Norwegian Petroleum Directorate

Print illustration Download data PRODUCTION FROM THE FIELD Download PDF Download as image (PNG)

PRODUCTION FROM THE FIELD

Development

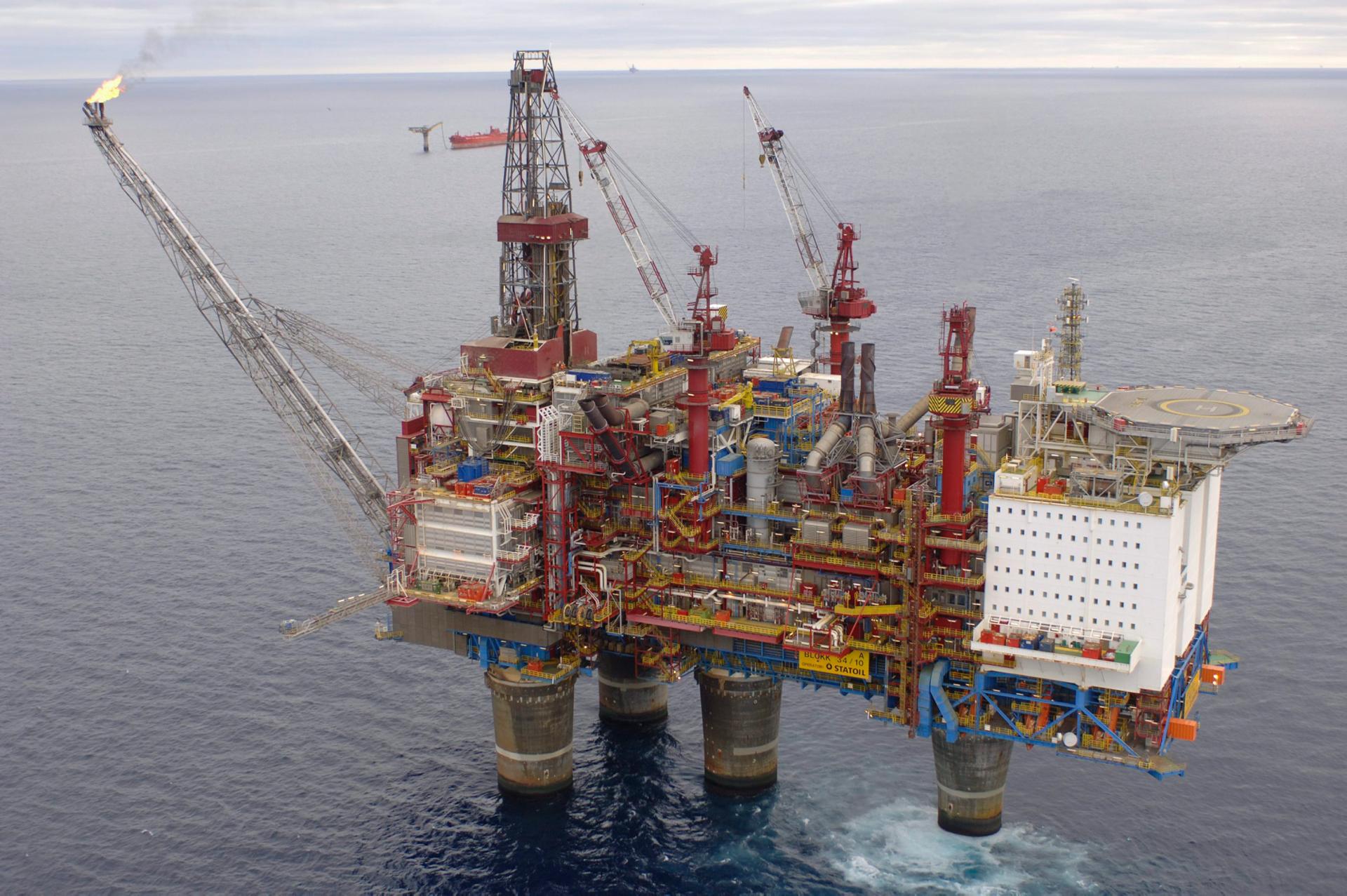

Gullfaks is a field located in the Tampen area in the northern part of the North Sea. The water depth in the area is 130-220 metres. Gullfaks was discovered in 1978, and the plan for development and operation (PDO) for Gullfaks Phase I was approved in 1981. A PDO for Gullfaks Phase II was approved in 1985. Production started in 1986. The field has been developed with three integrated processing, drilling and accommodation facilities with concrete bases and steel topsides (Gullfaks A, B and C). Gullfaks B has a simplified processing plant with only first stage separation. Gullfaks A and C receive and process oil and gas from Gullfaks Sør, Gimle and Visund Sør. The Gullfaks facilities are also involved in production and transport from the Tordis, Vigdis and Visund fields. Production from Tordis is processed in a separate facility on Gullfaks C. PDO for Gullfaks Vest was approved in 1993, and recovery from the Lunde Formation in 1995. An amended PDO for the Gullfaks field, covering prospects and small discoveries, which could be drilled and produced from existing facilities, was approved in 2005. An amendment to the Gullfaks PDO, covering Phase I production from the Shetland/Lista deposit, was approved in 2015.

Reservoir

Gullfaks produces oil from Middle Jurassic sandstone in the Brent Group, and from Lower Jurassic and Upper Triassic sandstone in the Statfjord Group and Cook and Lunde Formations. Recoverable oil is also present in fractured carbonate and shale in the overlying Shetland Group and Lista Formation. The reservoirs lie at a depth of 1,700-2,000 metres in rotated fault blocks in the west and a structural horst (raised fault block) in the east, with a highly faulted area in between. Reservoir quality is generally good to very good in the Jurassic reservoirs within each fault compartment, but poor reservoir communication is a challenge for pressure maintenance.

Recovery

The drive mechanism for the main reservoirs is primarily water injection, with gas injection and water/alternating gas injection (WAG) in some areas. The current drainage strategy for the Shetland/Lista reservoir is depletion, but pressure support by water injection is being evaluated.

Transport

Oil is exported from Gullfaks A and Gullfaks C via loading buoys onto tankers. Rich gas is transported by Statpipe for further processing at the Kårstø terminal.

Status

Drilling of new wells on Gullfaks has been challenging for many years due to overpressured areas in the Shetland/Lista interval. Production from the Shetland/Lista reservoirs has gradually contributed to reduced overpressures and improved drillability. Ten new wells for water injection and production were drilled in 2017, and additional wells will be drilled from all platforms in 2018. Pilot studies are being conducted to establish water injection as a drainage strategy for the Shetland/Lista reservoirs. An amended PDO for Shetland/Lista Phase II is expected to be submitted to the authorities in late 2018. Possible tie-in of third party discoveries in the area is being evaluated.

ACCRUED INVESTMENTS IN NOMINAL NOK

Source: The Norwegian Petroleum Directorate

Print illustration Download data ACCRUED INVESTMENTS IN NOMINAL NOK Download PDF Download as image (PNG)

ACCRUED INVESTMENTS IN NOMINAL NOK

NPD's CURRENT RESOURCE ESTIMATES

All numbers in mill. Sm3 o.e.

Print table Download data NPD's CURRENT RESOURCE ESTIMATES

NPD's CURRENT RESOURCE ESTIMATES – All numbers in mill. Sm3 o.e.
